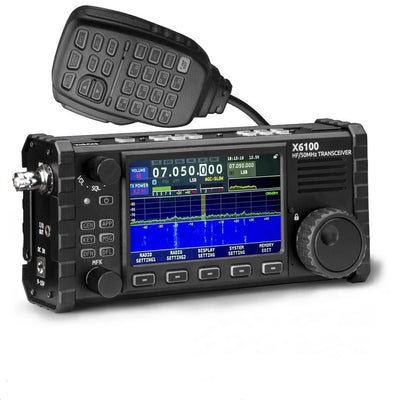

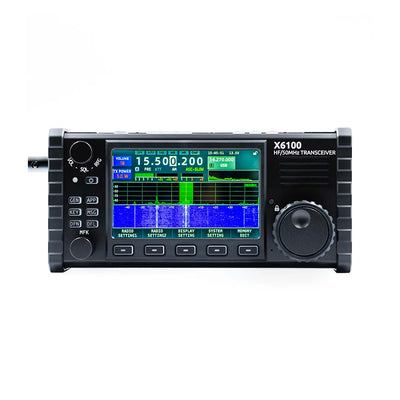

X6100 is a portable shortwave transceiver. Using SDR platform architecture with excellent performance, it is equipped with a powerful baseband and radio frequency unit, and integrates rich operating functions, bringing you a brand-new amateur radio cognition and experience. It boasts compact structure and small appearance. You can enjoy the fun of outdoor communication with it.

X6100 uses independent baseband and radio frequency units. The baseband unit provides control, advanced data processing, signal digitization processing, and multimedia interface functions. New functions can be continuously added through system upgrades. The radio frequency unit adopts a SDR structure to receive and transmit radio signals. Using a dual-channel structure with separate transmission and reception, combined with a 24-bit sampling and large dynamic RF front-end unit, it can obtain extremely high radio indicators.

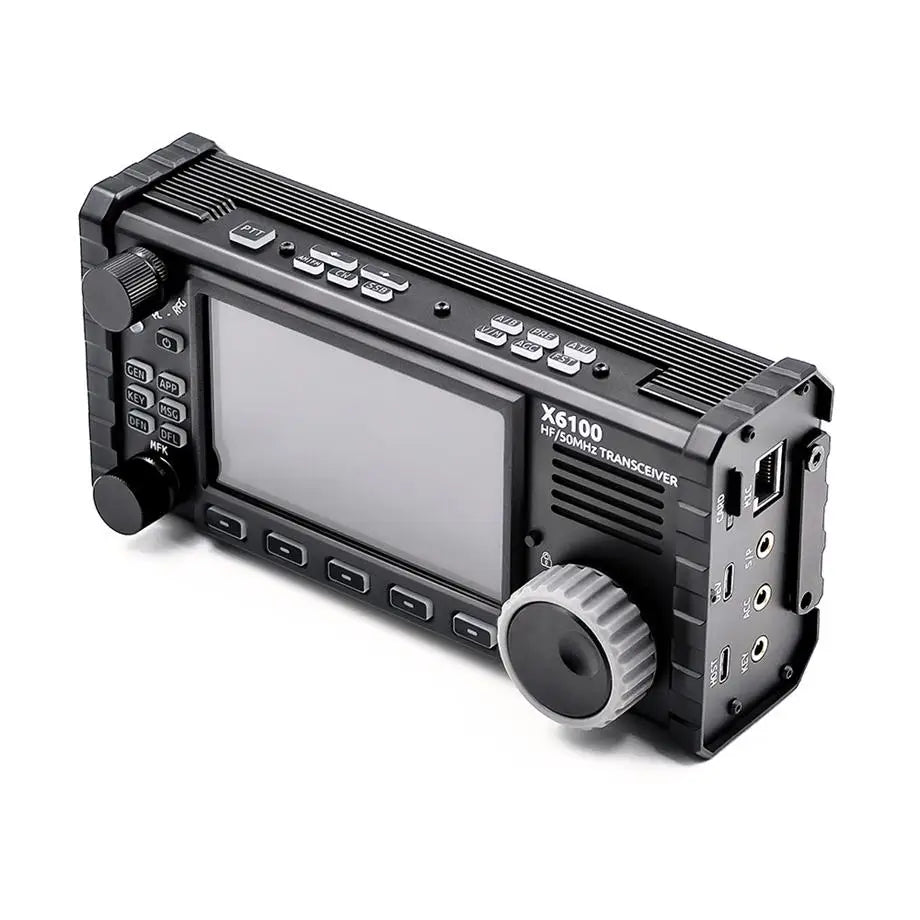

It provides two USB ports, supporting HOST and DEVICE, and supports an external TF card to store channel information or voice information. An ACC interface is provided, and it can be connected to an XPA125B amplifier via a dedicated cable to realize automatic control. A 3.5mm-KEY interface is provided for the connection of manual Morse key and automatic Morse key. It provides an S/P interface, which can be defined as an external speaker or earphone function through menu selection. It also provides an IQ signal output interface, which is used to connect external sampling equipment for auxiliary reception

Features:

HF/50MHZ full mode (supporting data communication)

Transmitting power: external power supply: 10W, battery: 5W

4-cun high-resolution color screen (800*480)

Built-in large capacity lithium battery pack (3000mAh, 12V)

Built-in efficient automatic antenna tuner

Integrated standing wave scanner and voice pager

Integrated modem, preset message, CW automatic call

Built-in Bluetooth/WLAN function, which can realize wireless audio, keyboard andmouse operation

Integrated USB line control/transmission, supporting USBHOST.

Standard high-stability TCX0 internal clock source

Specification:

Frequency range:
Receiving: 0.5MHz~30MHz 50.00~54MHz
Transmitting:
1.8~2.0MHz 3.5~3.9MHz
7.0~7.2MHz 10.1~10.15MHz
14.0~14.35MHz 18.068~18.168MHz
21.0~21.45MHz 24.89~24.99MHz
28.0~29.7MHz 50.00~53.99MHz

Working mode: CW,AM, SSB, FM

Minimum stepping: 1Hz

Antenna impedance: 50Ω

Working temperature range: 0°C~+55°C

Frequency stability: ±1.5ppm within 10~30min after startup@25°C: 1ppm/hour

Supply voltage: 9.0~15.0VDC, negative electrode grounding

Current consumption: receiving: 330mA@Max

transmitting: 3A@Max

Dimensions: 180*86*49mm (L*W*H) (not including protrusions)

Weight: about 880g (host only)


Transmitter parameters

RF output power: 10W (SSB/CW/FM) @13.8VDC

2.5W (AM carrier wave) @13.8VDC

5W (SSB/CW/FM) @ battery

1.5W (AM carrier wave) @ battery

Spurious suppression: 1.8~29.6MHz: ≥50dB

5(T54MHz:≥60dB

Carrier suppression: ≥50dB

Microphone impedance: 200~10k (600Ω in general)


Receiver parameters

Circuit type: ZIF

Sideband suppression: Ω50dB

MDS:-138dB


Sensitivity:

Frequency band mode SSB/CW FM AM

0.5~1.79999MHz / / 10uV

1.8~1.99999MHz 0.35uV / 10uV

2.0~27.9999MHz 0.20uV / 2uV

28.0~30.0MHz 0.20uV 0.22uV 2uV

50.0~54.0MHz 0.20uV 0.22uV 2uV

(PRE=o50.0 ~ 54.0MHz N,ATT=off, NB=off, NR=off, SSB/CW/AM=l0dB S/N, FM=12dB SINAD)

Audio output: 0.4W(8Ω, ≤10%THD)

Audio output impedance: 4~16Q


Antenna tuner

Tuning range of antenna tuner VSWR: 1:4.5

First tuning time: ≤15s

Memory load tuning: ≤0.2s

Wireless network/Bluetooth
